Daily Rate: $280.00  Weekly Rate: $710.00  Monthly Rate: $2000.00
Stock #: BOOM45 Unit #: 003-004 (Two to choose from.)

$500.00 deposit required.

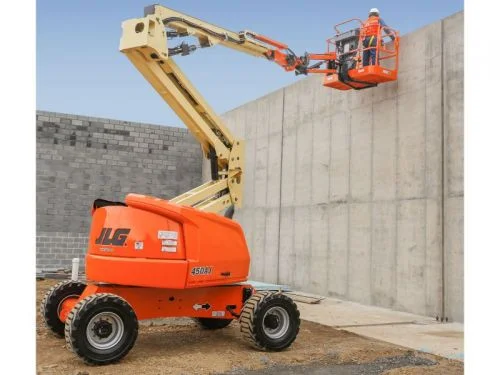

JLG 450-A SII Articulating boom / man lft. Two to choose from.
Reach
Platform Height 45 ft (13.72 m)
Horizontal Outreach 24 ft 6 in. (7.47 m)
Up and Over Height 25 ft 2 in. (7.67 m)
Swing 360 Degrees Non-Continuous
Platform Capacity
Unrestricted 500 lb (227 kg)
Platform Rotator 180 Degrees Hydraulic
Jib (450AJ Only) 4 ft 1 in. (1.24 m)
Range of Articulation 145 Degrees (+78, -67)
Dimensions
A. Platform Size 30 x 72 in. (0.76 x 1.83 m)
B. Overall Width 6 ft 10 in. (2.08 m)
C. Tailswing (working condition) Zero
D. Stowed Height 7 ft 5 in. (2.26 m)
E. Stowed Length 21 ft 5 in. (6.53 m)
F. Wheelbase 6 ft 6 in. (1.98 m)
G. Ground Clearance 14 in. (36 cm)
Weight
450A 14,500 lb (6,577 kg)
450AJ 16,500 lb (7,484 kg)
Max. Ground Bearing Pressure
450A 35 psi (2.46 kg/cm2
)
450AJ 36 psi (2.53 kg/cm2
)
Chassis
Drive Speed 2WD 3.5 mph (5.6 kmph)
Drive Speed 4WD 4.5 mph (7.2 kmph)
Gradeability 2WD 30%
Gradeability 4WD 45%
Tires 33/1550 x 16.5 Superwide
Axle Oscillation 8 in. (20.3 cm)
Turning Radius (Inside/Outside)
5 ft 8 in./14 ft (1.73 m/4.27 m)
Power Source
Dual Fuel Engine
GM Vortec 3000 MPFI 82 hp (61 kW)
Diesel Engine
Deutz F3M1011 47 hp (35 kW)
Diesel Engine
Caterpillar C2.2 50 hp (37.2 kW)
Fuel Tank Capacity 16.5 gal. (62.5 L)
Hydraulic Reservoir 30 gal. (113.6 L)
Auxiliary Power 12V DC
