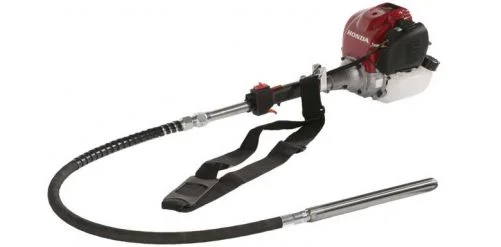

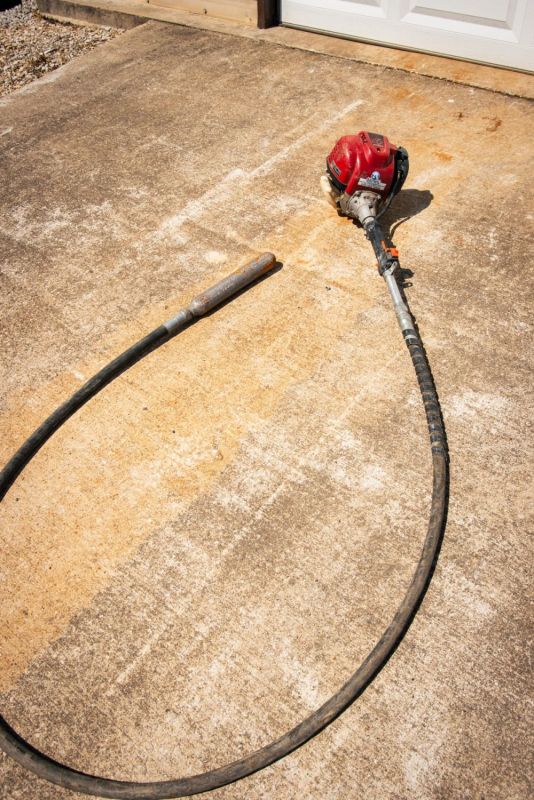

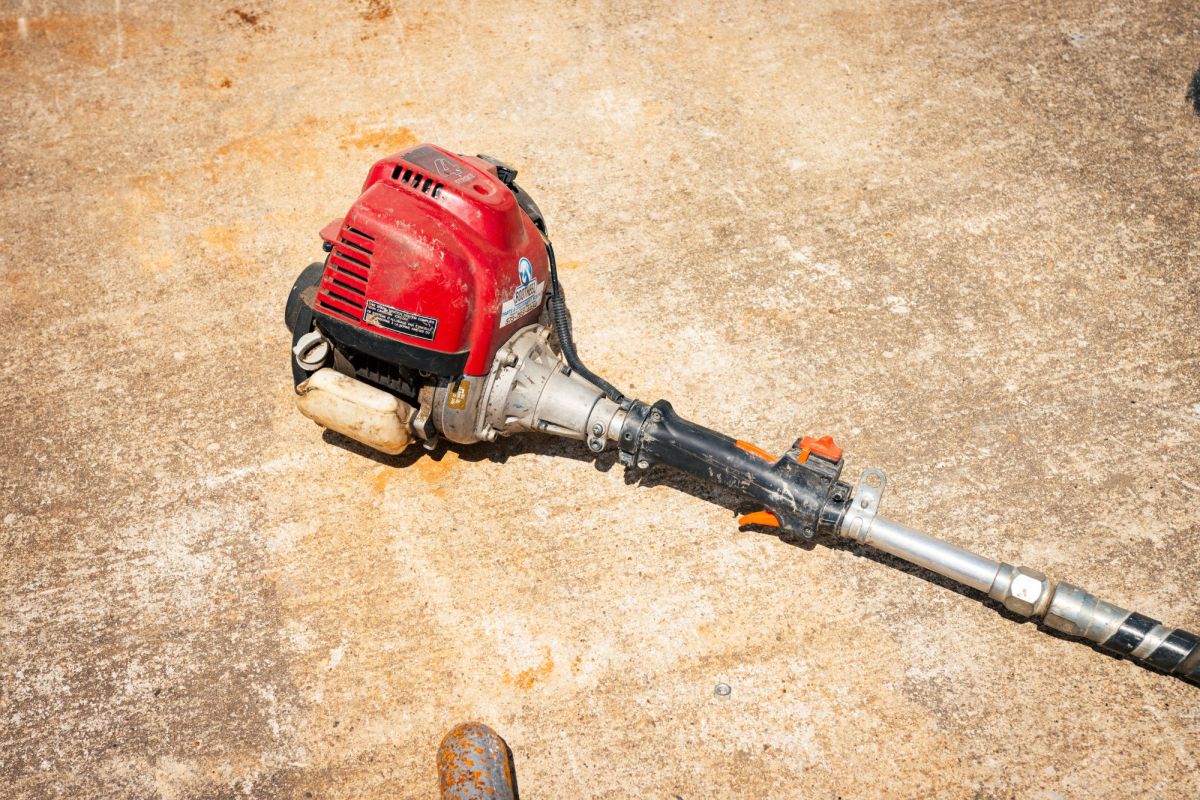

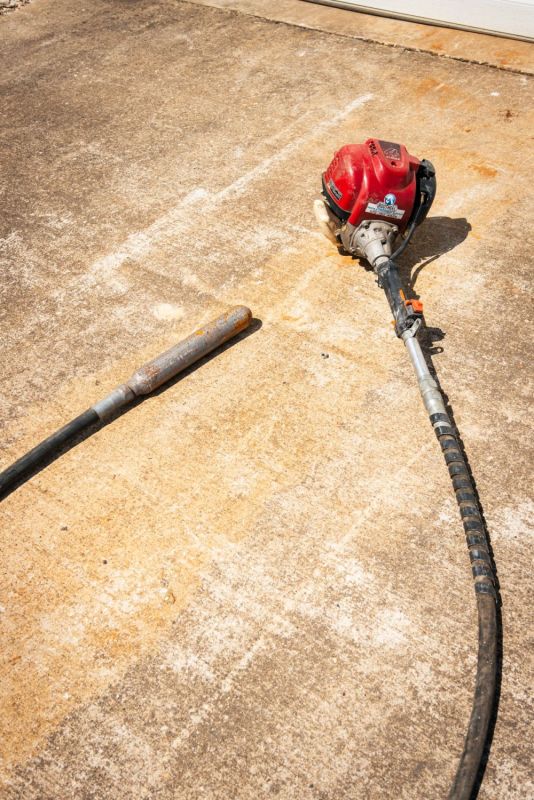

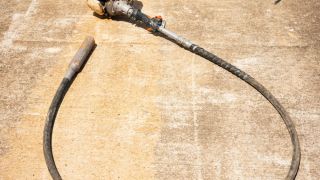

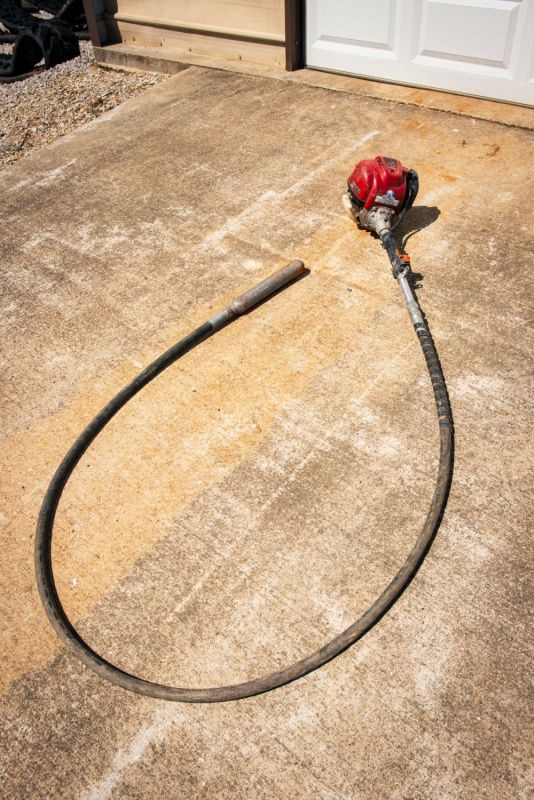

Gas Powered Concrete Vibrator
Stock #: CONCVB Unit #: 002
Daily Rate: $80.00 Weekly Rate: $235.00 Monthly Rate: $685.00
$150.00 Damage Deposit
10' x 2" flexible shaft with 2" x 12" head. Used to get air bubbles out of wet concrete walls.
Engine Type: 4-stroke, OHC, air-cooled
Displacement: 35.8 cm³ (37.7cc)
Power Output: Approximately 1.3 to 1.6 HP (0.97 to 1.19 kW)
Engine Speed: Around 5,500 to 7,000 RPM
Fuel Type: Unleaded gasoline
Fuel Tank Capacity: 0.63 liters (0.67 US qts)
Oil Capacity: 100cc (3.4 US oz)
Starting System: Recoil start
Lubrication System: Oil mist
Vibrator System Specifications
Drive System: Flexible shaft
Poker Head: Varies by model, but typically 1.5 inches (38mm) in diameter
Shaft Length: Varies by model, from 2m up to 6m (6.5-20ft)
Vibration Frequency: Around 7,000 to 10,000 VPM (Vibrations Per Minute)
