Daily Rate: $140.00  Weekly Rate: $390.00  Monthly Rate: $1140.00
Stock #: SCIS25 Unit #: 001

$500.00 Deposit Required

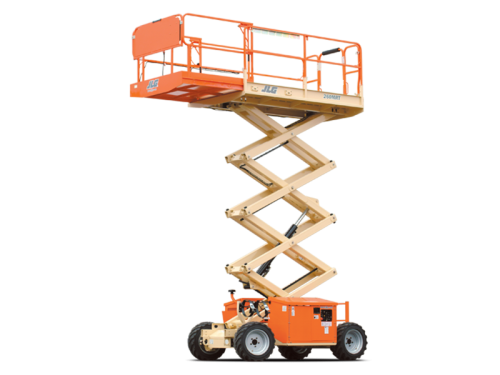

JLG Scissor 260 MRT 4 x 4 Scissor Manlift
Selected Dimensions
Dimensions
A. OVERALL LENGTH 8.8 ft in 2670 mm
B. OVERALL WIDTH 5.7 ft in 1750 mm
D. WHEELBASE 6.5 ft in 1980 mm
E. GROUND CLEARANCE 7.9 in 200 mm
Platform
F. MAX PLATFORM HEIGHT 26 ft in 7920 mm
G. PLATFORM WIDTH 65 in 1650 mm
H. PLATFORM LENGTH 102 in 2590 mm
I. DECK EXTENSION 48 in 1220 mm
J. HEIGHT OF RAILS 3.6 ft in 1100 mm
Specification
Engine
MAKE Kubota
GROSS POWER 24.5 hp 18.3 kw
FUEL TYPE Dual Fuel
Operational
OPERATING WEIGHT 7359 lb 3338 kg
FUEL CAPACITY 7.5 gal 28.4 L
HYDRAUILC SYSTEM FLUID CAPACITY 15 gal 56.8 L
MAX SPEED 3.5 mph 5.6 km/h
TIRE SIZE 26x12
TIRE FILL/TYPE Lug Tread
Platform
MAX PLATFORM HEIGHT 26 ft in 7920 mm
MAX PLATFORM WEIGHT CAPACITY 1250 lb 567 kg
PLATFORM LENGTH 102 in 2590 mm
PLATFORM WIDTH 65 in 1650 mm
LIFT TIME 27 sec
LOWER TIME 21 sec
HEIGHT OF RAILS 3.6 ft in 1100 mm
DECK EXTENSION 48 in 1220 mm
Dimensions
OVERALL LENGTH 8.8 ft in 2670 mm
OVERALL WIDTH 5.7 ft in 1750 mm
HEIGHT W/O RAILS 7.8 ft in 2370 mm
WHEELBASE 6.5 ft in 1980 mm
TURNING RADIUS 7 ft in 2130 mm
GROUND CLEARANCE 7.9 in 200 mm
