Daily Rate: $70.00  Weekly Rate: $205.00  Monthly Rate: $600.00
Stock #: RAMMR1 Unit #: 004

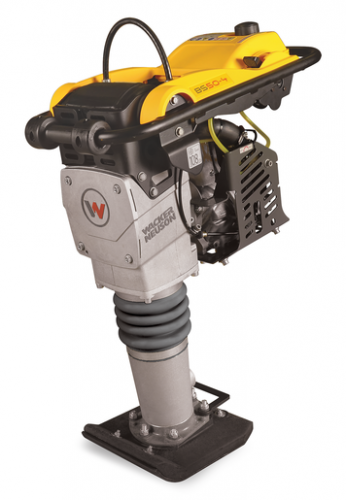

Wacker BS50-4s & BS60-4s Four-Stroke Rammer
The Wacker Neuson BS50-4s and BS60-4s high performance 4-cycle vibratory rammers are used to compact cohesive, mixed and granular soils. These rammers feature the Wacker Neuson WM 100 air cooled, single-cylinder gasoline engine that packs a tremendous amount of power into a small and compact design. The high stroke energy and percussive rate of the motor combined with quick advance travel allow the BS50-4s and BS60-4s to achieve impressive compaction results in less time.
Wacker BS50-4s & BS60-4s Features & Benefits
Easy operation - fuel valve is integrated into throttle; a single lever controls throttle acceleration and shut-off.
4-stage air filter - heavy-duty filter prevents dust from entering the rammer engine for enhanced engine life.
4-cycle crankcase - crackcase is incredibly durable and easy to maintain.
Low oil consumption - crankcase features a breather system with 3-piece piston oil ring for improved oil efficiency.
Guide handle shock-mount system - built-in shock system reduces HAV (hand-arm vibration) and improves operator comfort.
Low oil LED indicator - LED lights up if rammer is started without enough oil inside and will automatically shut off after 10 second to prevent engine damage.
Wacker Neuson Vibratory Rammer Specifications
Wacker
BS 50-4S
BS 60-4S
Operating
Weight
139 lbs
156 lbs
Overall
length
26.5 in.
26.5 in.
Compaction
Depth
20 in.
23 in.
Shoe Size
WxL
11 in. x 13 in.
11 in. x 13 in.
Stoke
1.6"
2.7"
Travel Speed
25.9 ft./min
28 ft./min
Blows
Per Minute
660
680
Engine Power
3.2 hp
3.2 hp
Max Engine RPM
4,200
4,200
Start Method
Recoil
Recoil
Max. Area
Capacity (ft.)²/hr
1,428
1,543
